Air Lock, Air Lock Machine

Air Lock

Type：TGFY5Volume(L)：5Speed(r/min)：20-60Weight(kg)：51Power：0.55

We're here to help: Easy ways to get the answers you need. Send e-mailGet Price

Introduction

Air Lock Purpose and Performance

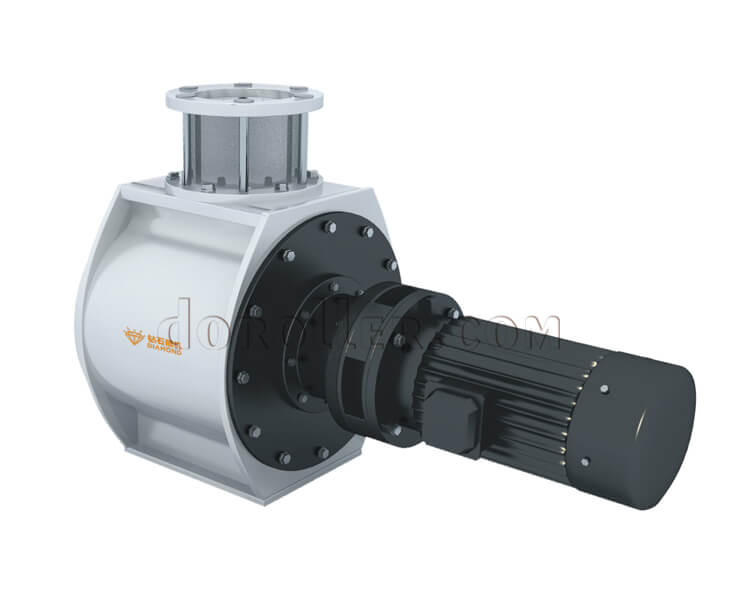

TGFY airlock is the indispensable and important equipment in the pneumatic transmission, ventilation and dust removal, which can blow the powder or particle material in the negative pressure condidtion into air continuously.
The main component of this device is rotary impeller that has the functions of transmitting material as well as airproof effect.

We have roots blower and screw conveyor to used with air lock.

Air Lock Machine Characteristics
Featured by compressed structure, reliable performance and easy operation, this air lock machine is widely used in the pneumatic transmission of grain, animal feed, grease, chemical and storage and transport industries, as the airlock and discharging device.

Air Lock Technical Parameters

Type	Volume（L）	Speed（r/min）	Weight(kg)	Power
TGFY5	5	20-60	51	0.55
TGFY7	7	20-60	57	0.55-0.75
TGFY9	9	20-60	60	0.55-0.75
