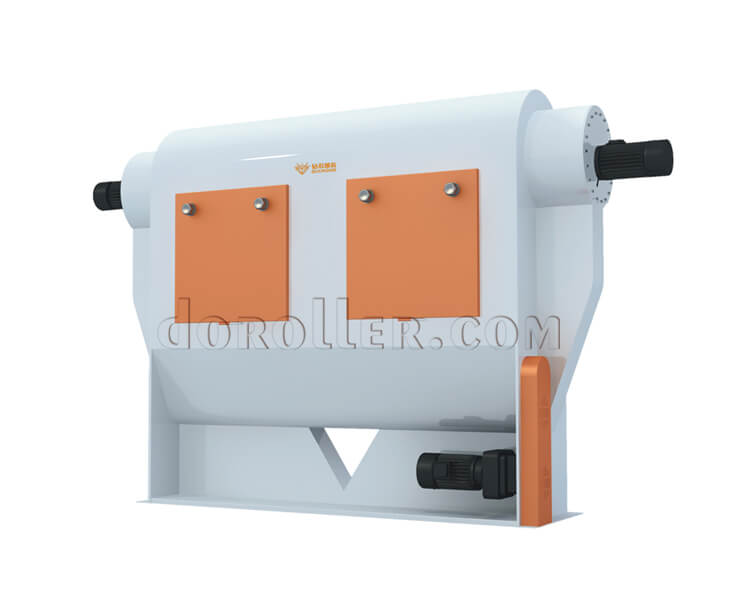

Air Suction Separator

Model:TXFL 80Capacity:12Primary Cleaning(TPH):50Out size(mm)D×H:860×2100Primary Cleaning(m³/h):3000Weight(kg):230

We're here to help: Easy ways to get the answers you need. Get Price

Share with :

Introduction

Air Suction Separator Application
The TXFL series air suction separator is used for removing the light impurities, like grain skin and dust, and it is capable of processing wheat, rice, corn, and oil products etc. It is suitable for grain depot, flour milling plant, rice processing plant, corn processing plant, oil expression plant, and animal feed plant, etc.

Air Suction Separator Structure and Features
This kind of grain dust removing equipment is composed of feeding system, air circulation channel, centrifugal blower, and dust discharging system, etc. It has good performance in grain cleaing process.
1. Good separating result, and high efficiency.
2. Reduced operation cost for the air self-circulation system.
3. Both combined use with vibriating sifter, plane rotating sifter or wheat scourer, and single use are available.
    PS: Magnetic separator and high pressure fan also can be supplied.
4. Independent air network and built-in blower reduce the machine's covering area.
5. Reliable sealing ensures no dust leak.

air suction separator
grain dust removing equipment

Air Suction Separator Technical Parameters
Model Capacity Primary Cleaning(TPH) Quantity of Air Primary Cleaning(m³/h) Weight(kg) Out size(mm)D×H
TXFL 80 12 50 2800 3000 230 860×2100
TXFL 100 16 65 3500 3800 360 1060×2150
TXFL 120 20 83 4100 4500 400 1260×2200
