Grain Milling Equipment, Grain Flour Roller Mill

Roller Mill/Grain Milling Equipment/Maize Processing Machine

Model：BS 2540Roller(D×L)mm：Φ250×400Roller range D：Φ220 ~ Φ250Speed ratio：2.5:1D of feeding roller：Φ75Power(kw)：5.5-11

We're here to help: Easy ways to get the answers you need. Send e-mailGet Price

Introduction

Roller Mill/Grain Milling Equipment|Maize Processing Machine

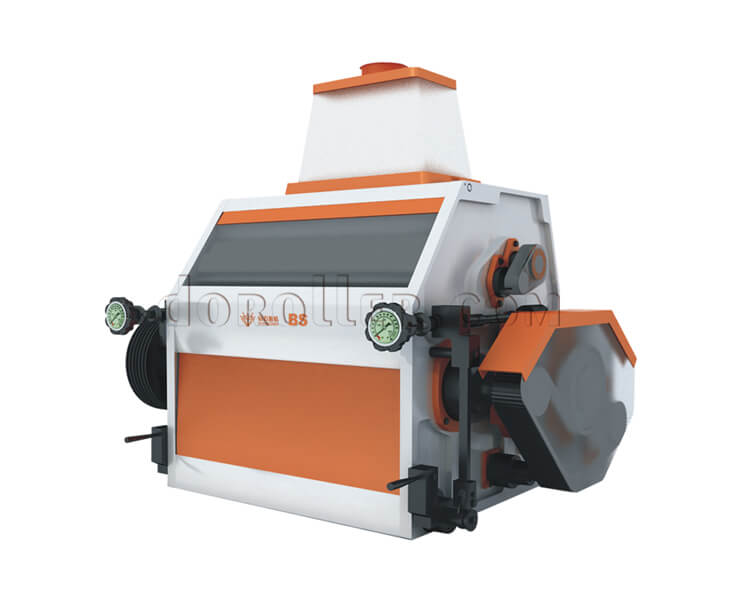

Diamond Brand BS Model Flour Mill Presentation
Product specification has 400,500,600 that can be applied in the flour milling plant with a capacity less than 100TPD. It is also used in the breaking and grinding of other materials.
1. Manual clutch
2. Support the use of taper roller bearings, for easy removal.
3. It is mainly used in the huge flour project of daily output less than 100 tons

Grain Flour Roller Mill Features
1. The lower part of the machine is made of high-strength cast iron, the upper part is made of high quality steel.
2. By laser cutting carbon dioxide protection welding, with good stability, good cushioning effect.
3. Pneumatic pressure automatic control, pulse signal, and unique hanging servo feeding mechanism.
4. The stroke valve imports U.S. Parker products, so it has a high sensitivity, the unit can achieve centralized control.
5. Achieving the best grinding effect with cylinder feeding tube of acrylic high transparent Plexiglass.
6. Roller through strict quality inspection and the dynamic balance treatment, no vibration, low noise, smooth operation.
7. Roller bearings with Swedish SKF, Swedish special butter, low noise, long service life.
8. The parts surface of flour milling machine adopts the pure manganese black phosphate treatment, and it is covered by a protective film so that it is bright with no fading.
9. The painting of mechanical housing surface adopts automotive paint, so the machine has a delicate appearance.

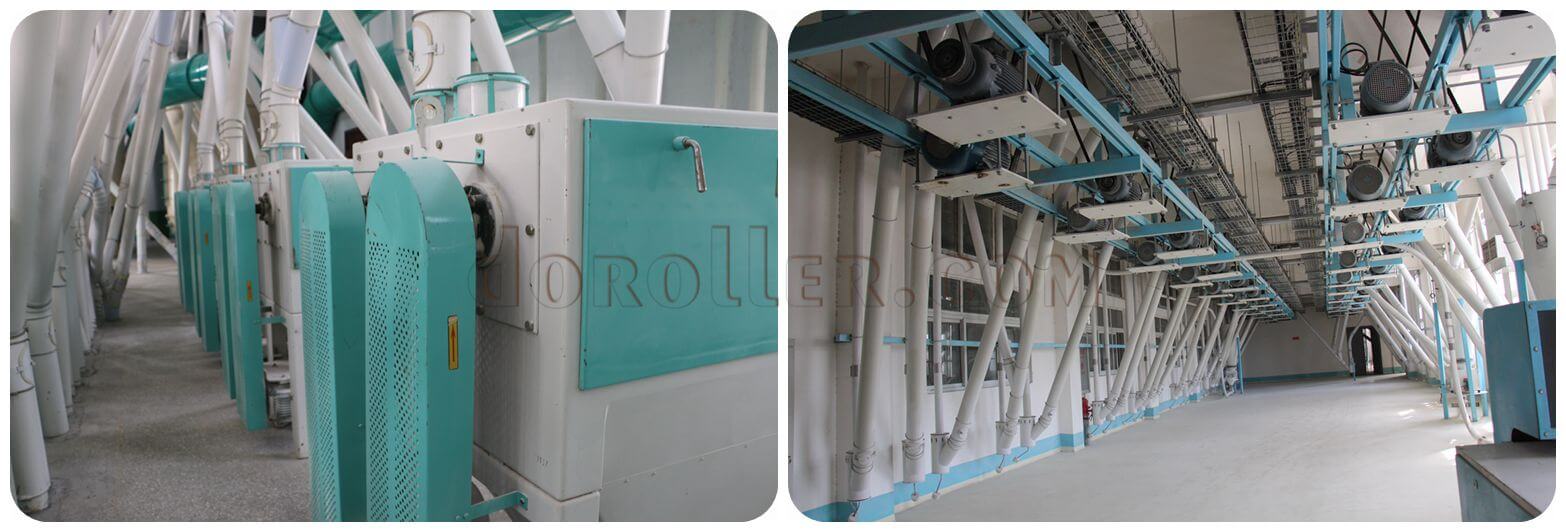

wheat milling machine

Diamond Brand BS Model Flour Mill Parameter

Model	BS 2540	BS 2550		BS 2560
Roller(D×L)mm	Φ250×400	Φ250×500		Φ250×600
Roller range D	Φ220 ~ Φ250
Speed ratio	2.5:1		1.5:1		1.25:1
D of feeding roller	Φ75
Drive belt of fast and flow rollers	RPP8M ~ 1520
Drive belt of motor	B type L ≤2300
Power(kw)	5.5-11	5.5-11		5.5-15
D of liftting pipe(mm)	Φ70-Φ110	Φ70-Φ120		Φ70-Φ120
Outside size and weight(kg)
