Flour Milling Equipment/Flour Processing Equipment

Model:J type 2550×2CRoller D×L:φ250×500Roller range:φ250 - φ220Feeding roller D(mm):φ75Driving belt of motor:B type L ≤ 2250Power(kw):5.5 - 11

We're here to help: Easy ways to get the answers you need. Get Price

Introduction

Flour Milling Equipment/Flour Processing Equipment
The

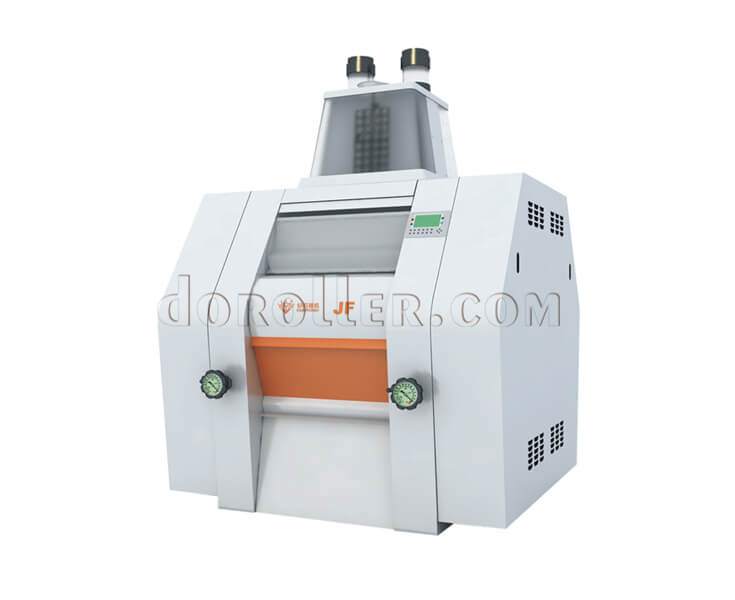

Diamond Cyclone Model Flour Mill is J type flour milling machine. Product specification 500, 600, 800 can be applied in flour milling plant with a capacity less than 200TPD.

Diamond Cyclone Model Flour Milling Machine Feature
1. This equipment can be set with microcomputer to realize full-automatic control. The complete machine can be controlled solely; can be controlled in a working net automatically, remotely and intensively; can be included in local area network or internetwork to have remote conection, diagnose and repair.
2. The feeding control system can be pneumatic-coutrol servo feeding or computer-control frequency conversion feeding.
3. Grinder roller adopts eccentric lever clucth structure, and the grinder roll group independently bears working stress.
4. Lie the grinder roll makes the material easily enter grinding area,convenient disassembly and maintenance.
5. Grinder roll bearing adpots self-aligning roller bearing, which ensures coaxial precise turning and bearing high rotating speed and operating pressure.
6. Adopting high quality, high-alloy and high-wear-resistance composite centrifugal grinder roll, steady running and long service life.
7. High precision rigidity strainer, long service life of V-belt.
8. Speed roller adopts three-wheel constant-speed tooth wedge belt, high transfer power, steady running and low noise.
9. There is negative pressure gas suction device of double intakes inside mill chamber, which not only optimizes feeding state, but also improves the thermal discharge of grinder roll and material.
10. The scraper cleans up roller more completely, long service life and easy maintenance.
11. The key parts all adopt the international advanced products.
12. The complete machine is full-closure compound structure, and the machine is painted by electrostatic spraying technique, so its original color can be kept for a long time.
13. The global initial computer automatic test and display, digital adjustment of roller space.
14. The grinder roll of core grinding adpots global unique laser frost technology, whose service life is two times longer than sand-basting grinder roll.
15. Automatically controlled by the central control panel.
16. The motor is set within the machine.
17. Automatically broken material bits up feeding to the sieve.
18. It is mainly used in the huge flour project of daily output more than 200 tons, and it is also used for breaking and grinding of other grain materials.

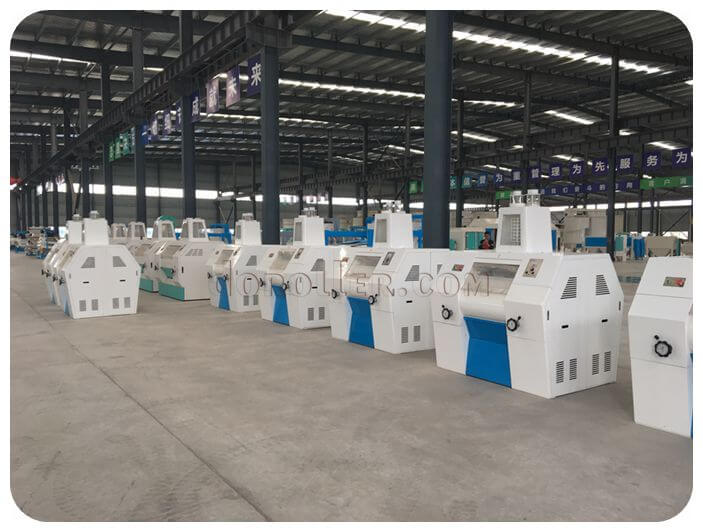

wheat milling machine

Diamond Cyclone Model Flour Mill Technical Parameter
Model J type 2550×2C J type 2560×2C J type 2580×2C
Roller D×L φ250×500 φ250×600 φ250×800
Roller range                                                                φ250 - φ220
Rotate speed of fast roller(r/min)                                                                   400 - 600
Speed ratio between fast and slow roller                                                              2.5:1 2:1 1.5:1
Working air pressure(Mpa)                                                                    0.5 - 0.7
Feeding roller D(mm)                                                                       φ75
Driving belt between fast and slow roller                                                               RPP8M - 1760
Driving belt of motor                                                               B type L ≤ 2250
Power(kw) 5.5 - 11 5.5 - 15 5.5 - 15
Diameter of liftting pipe(mm) φ70 - 120 φ70 - 120 φ70 - 125
Outside size(L×W×H)mm                                                           1450×1332×2001
